JH-4000C+ 2-pillar lift 4000kg SMART EQUIPMENT/230/400V

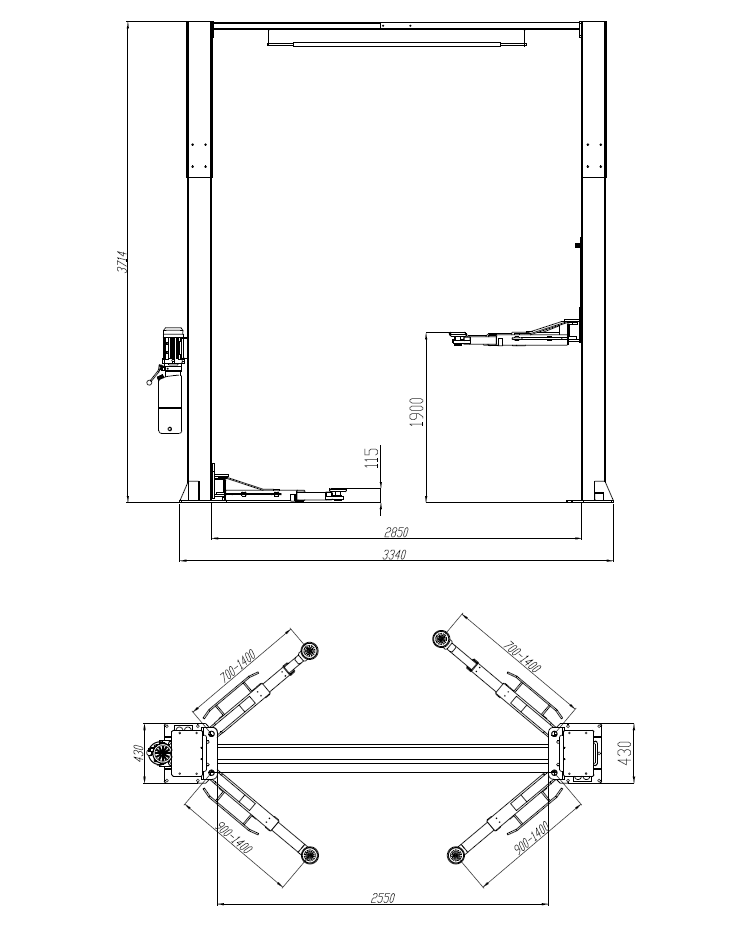

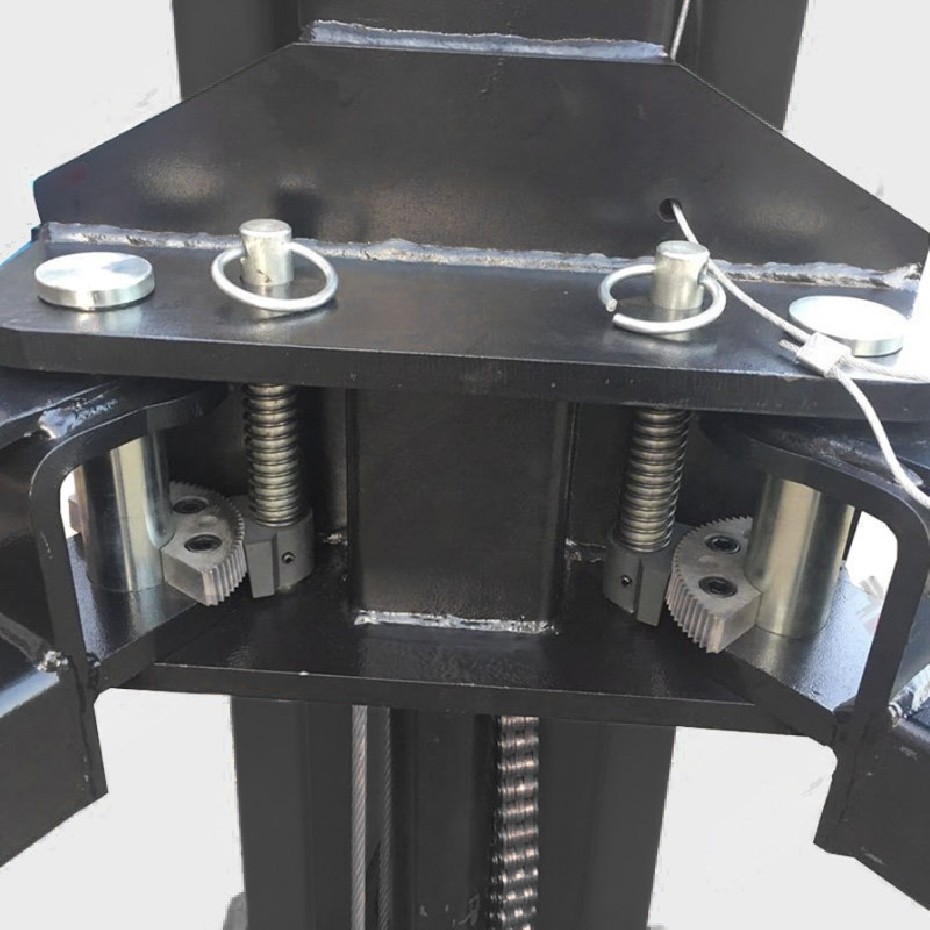

2-column electrohydraulic lift – 4000 kg Reliable electrohydraulic lift with an internal carriage, suitable for any auto repair shop. The set includes lifting adapter extensions of 55 and 127 mm. The lift is ideally suited for repair work on passenger cars and SUVs. The synchronization cables and hydraulic system are connected from above, so the main systems are protected from moisture, dirt, and corrosion. The open space between the columns and the inner carriage ensures comfortable passage and safe, ergonomic work. Mechanical height locks – a guarantee of reliability! Technical specifications: Maximum lifting capacity – 4000 kg Operating principle – electrohydraulic Synchronization – hydraulic-rope Maximum lifting height – 1900 mm Minimum sole height – 115 mm Front lifting supports – 2-stage (900–1400 mm) Rear lift supports – 3-stage (700–1400 mm) Automatic support position locking Pump power – 2.2 kW Power supply – 230/400 V, 50 Hz The distance between the columns is 2850 mm Overall width of the lift – 3340 mm Column height – 3714 mm Hoist – with an internal trolley Hydraulic oil – HLP32 (10 L) CE certificate Warranty period – 12 months. Installation conditions: Power supply – 230/400 V, cable 3x2.5 mm² or 5x2.5 mm², automatic fuse min. 16 A Usage surface – smooth, solid base capable of withstanding ≥3500 kg load Surface deviation – ±0.00° For indoor use only Operating temperature – from –10 °C to +40 °C
