Main features of the 'EVO-40E PRO' car lift:
Lifting capacity – 4000 kg. Suitable for passenger cars, SUVs, and vans.

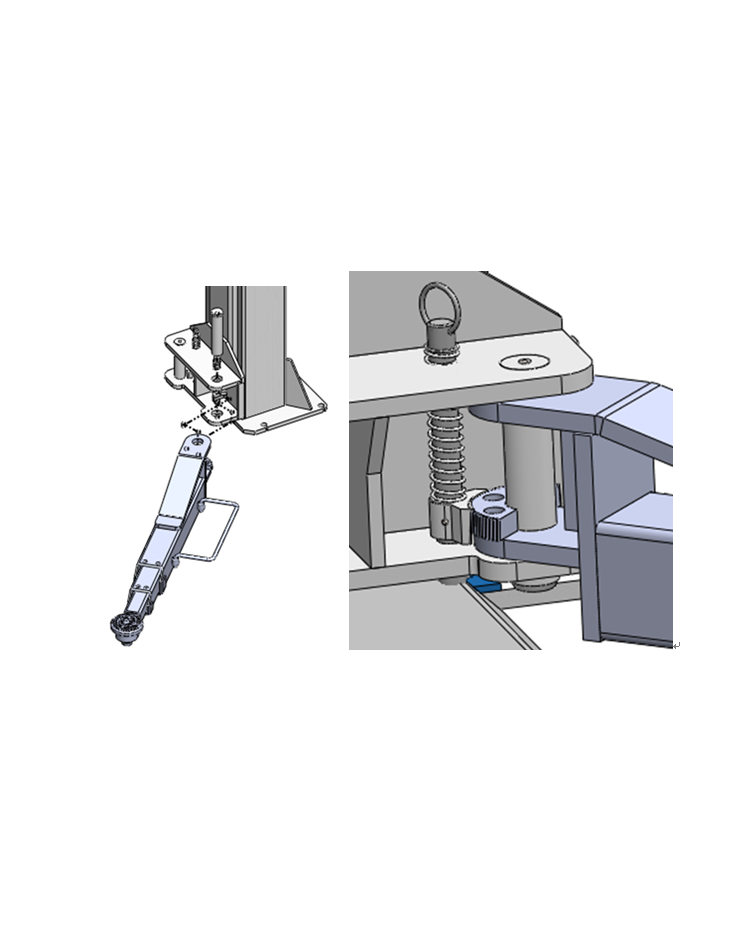

Electromagnetic safety latch control ensures safe and fast elevator locking.
3-stage lifting supports at the front and rear allow the lift to be adjusted for wheelbases of different lengths.
Updated 2025 control panel with clearer controls and an additionally integrated 230 V power socket for connecting tools.
The double, reinforced construction of the ramp consists of a lower and an upper part, ensuring maximum protection of the synchronization cables and hydraulic hoses from damage and moisture.
The set includes double-threaded removable adapters and spacers designed for SUVs.

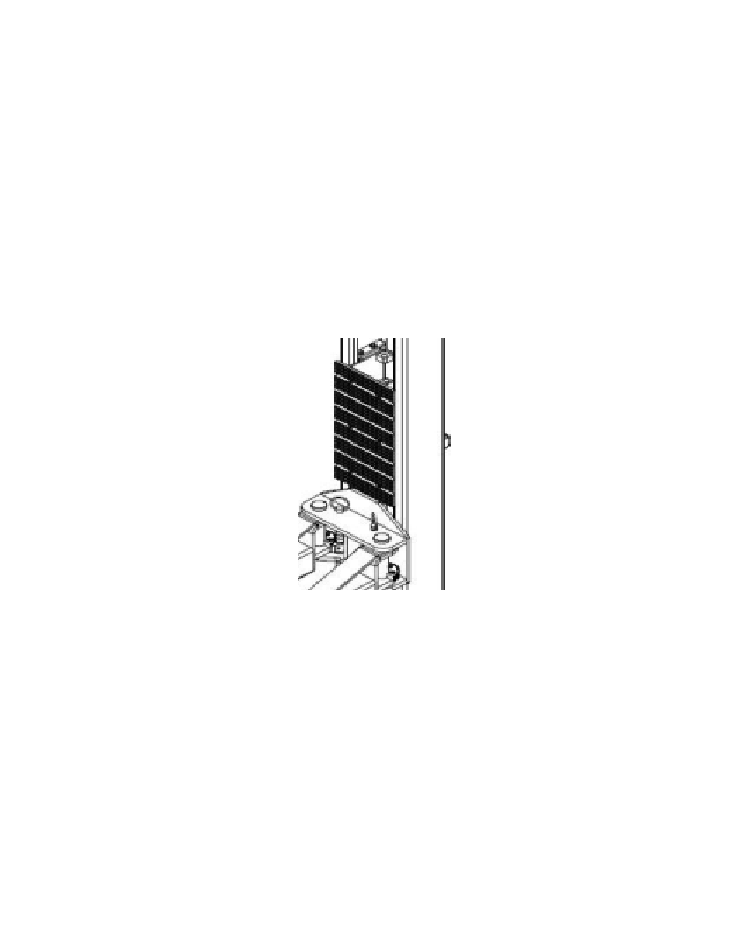

Protective cylinder curtains are installed in the column to protect the hydraulic components during operation.
Hydraulic cylinders are manufactured using robotic machines, and each cylinder is inspected at the factory.
The structure is welded using robots – this ensures the highest precision welding and strength.
The bollards have wide guards that protect vehicle doors from being scratched.
The pulleys have integrated protection against the synchronization cable falling, ensuring smooth and synchronized operation
Technical specifications – car lift 'EVO-40E PRO'
Lifting capacity:4000 kg
Engine power:2.2 kW
Power supply voltage:220–230 V / 380–400 V, 50/60 Hz (optional, to be selected when ordering)
Noise level:< 85 dB(A)
Operating temperature:from -25 °C to +55 °C
Maximum working humidity:≤ 80 %
Maximum installation height above sea level:1000 m

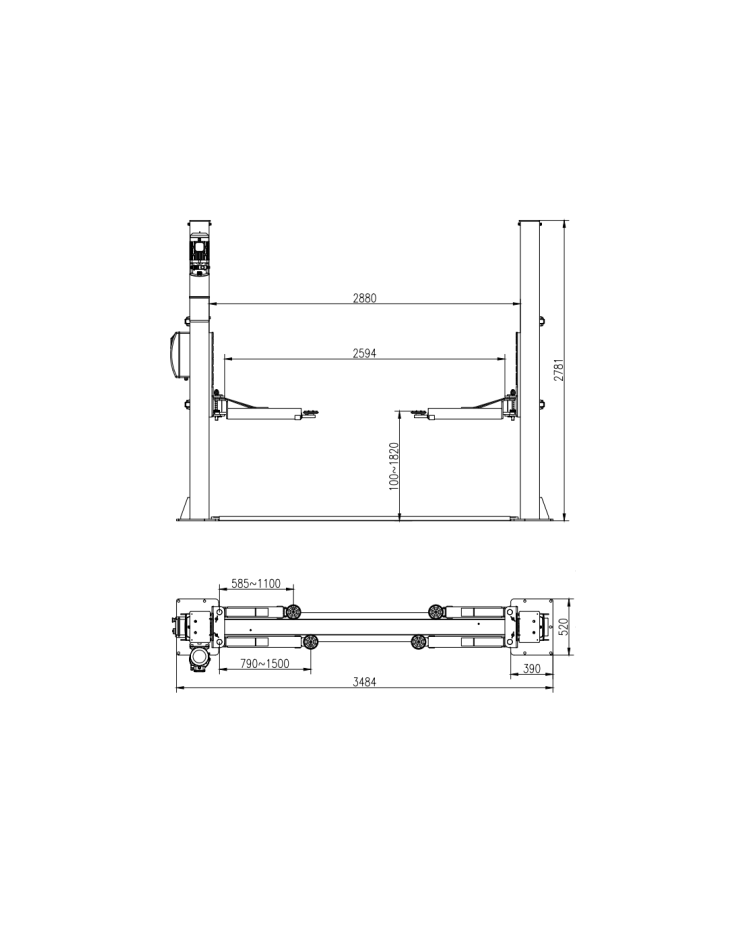

Dimensions
Overall height:2781 mm
Overall width:3484 mm
Distance between columns:2880 mm
Length of front 3-stage supports:585–1100 mm
Length of the rear 3-stage support:790–1500 mm
Configuration:
Hoist 'EVO-40E PRO'
Assembly instructions
Hydraulic pump
Control panel with 230 V power socket
Lifts for SUVs and vans
Mounting anchors
Foot crush protection
Column covers (fabric)
Shims
Assembly screws
Package:3 × 0.5 × 0.8 m
Total weight:610 kg
Product params
The upgraded 2025 lift model “EVO-40E PRO” is designed for lifting vehicles up to 4000 kg. It features a new control panel with a 230 V socket, electromagnetic safety locking, and 3-stage lifting supports at the front and rear. The double-structure drive-over ramp protects cables and hoses from damage. The set includes adapters and extensions for SUVs. The structure and hydraulic cylinders are robotically manufactured, and the pulleys and cylinders are additionally protected.
