EVO-40DEH 2-column lift 4000kg EVOLUTION/230/400V

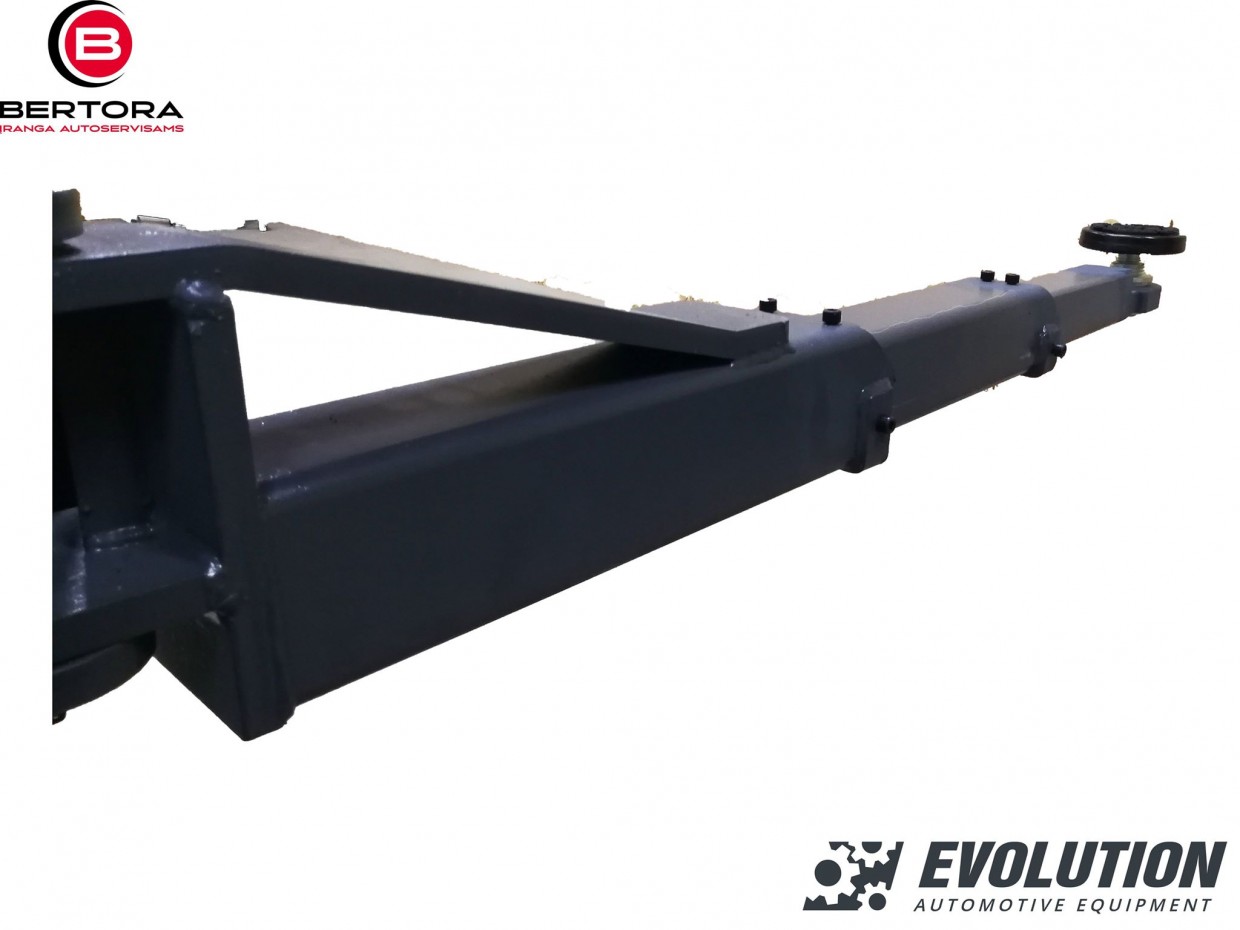

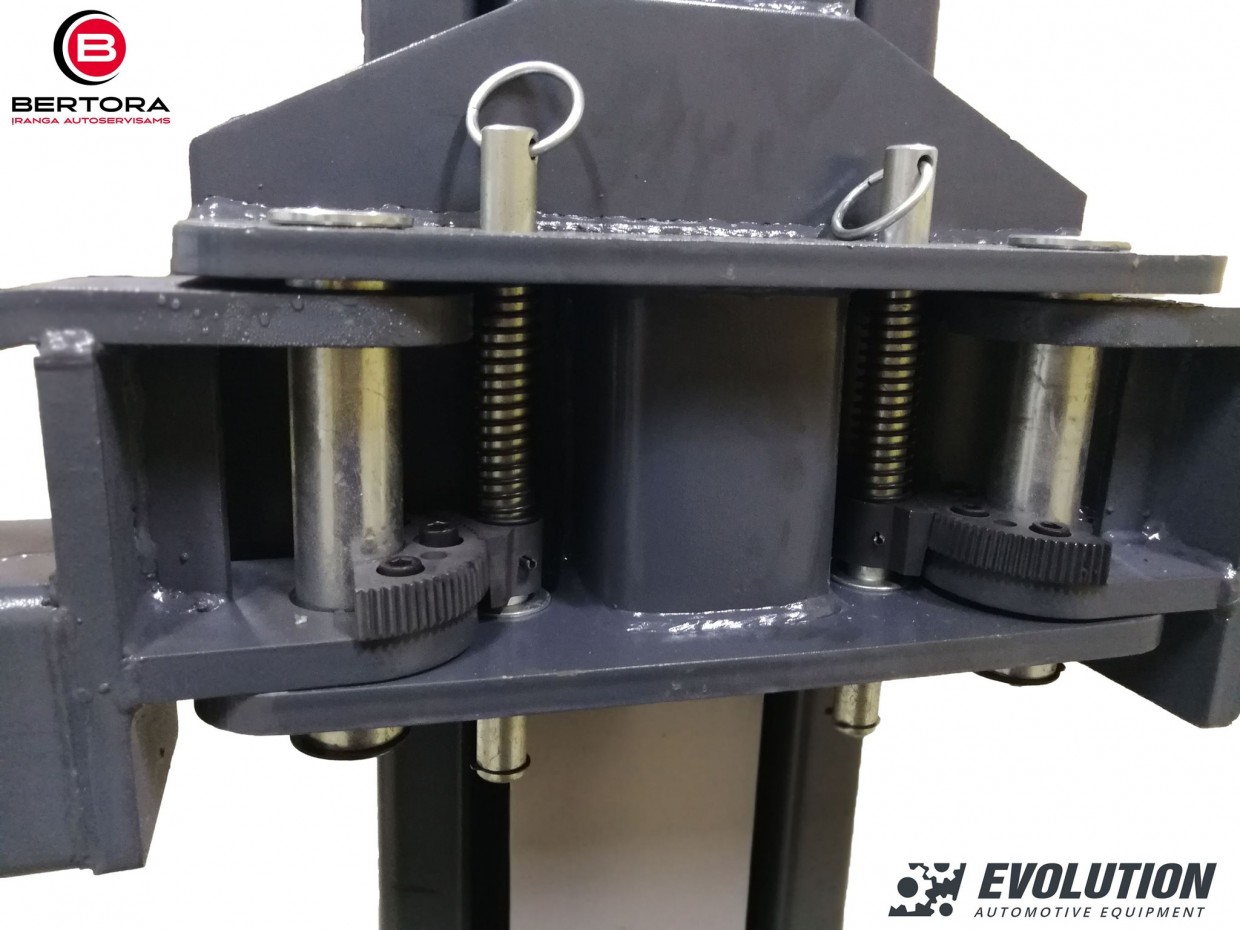

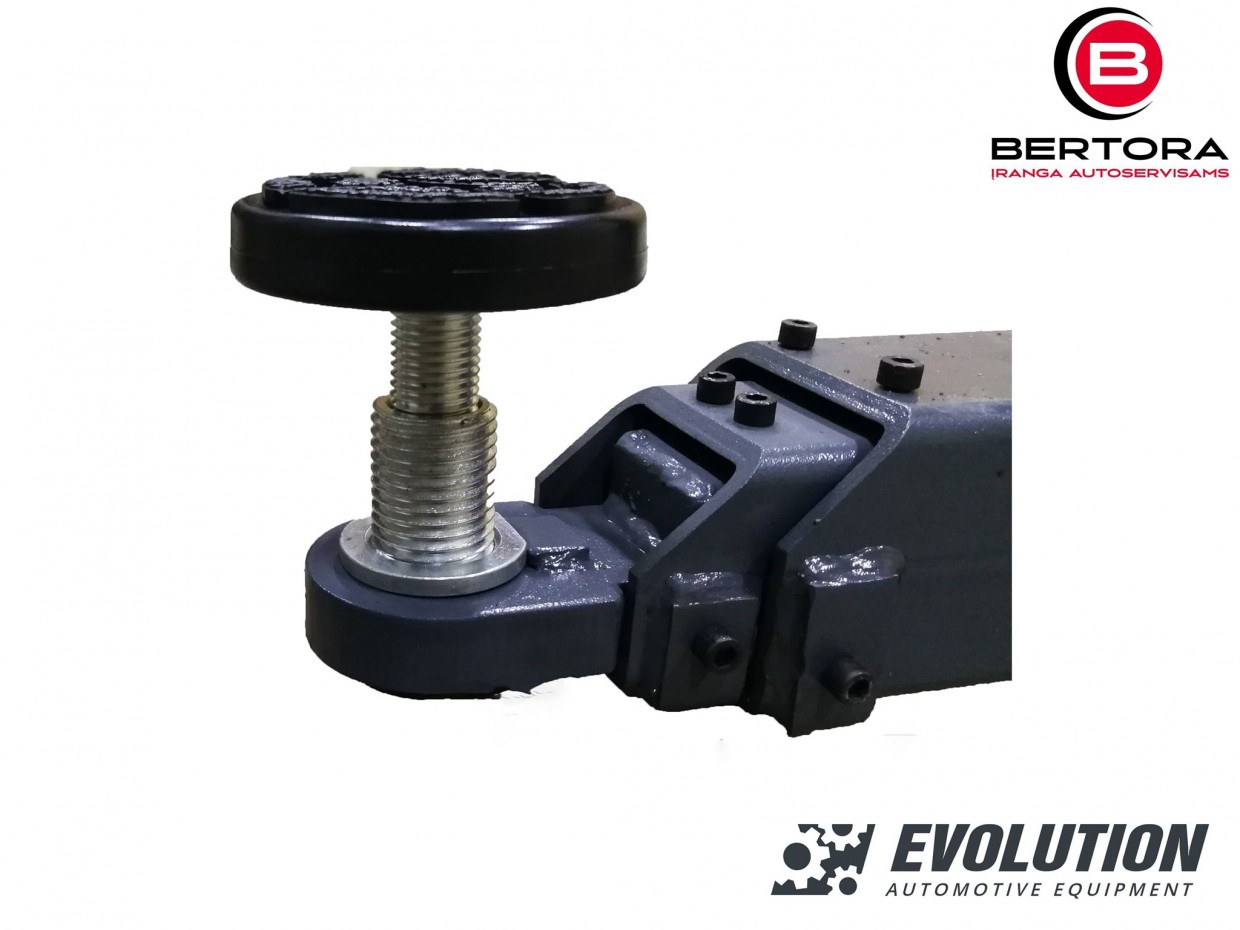

Professional two-post lift set EVOLUTION AUTOMOTIVE EQUIPMENT EVO-40DEH The lift is designed for the routine maintenance of light and light commercial vehicles. With the new type of lifting carriage frame structure and 3-stage lifting arms, the lift provides wide and convenient vehicle positioning options, while the top-class BUCHER electro-hydraulic station with a plastic hydraulic oil tank ensures the hydraulic system's durability (prevention of corrosion compared to a metal hydraulic oil tank) as well as smooth and quiet operation. Electromagnetic height locks – a guarantee of reliability! Advantages of the lift: 3-stage lifting supports; Internal lifting support locks; Reinforced construction lifting trolley; BUCHER manufacturer hydraulic unit; Plastic hydraulic oil reservoir; Color resistant to dirt; Technical specifications: The lifting capacity of the hoist is 4.0 tons; Maximum lifting height – 1900 mm; Maximum lift height – 3904 mm; Minimum lifting support height – 110 mm; Front lifting supports 628-902-1080 mm (first-second-third step) Rear lifting supports 793-1123-1500 mm (first-second-third stage) External lift width – 3426 mm; Electro-hydraulic pump power – 2.2 kW Power supply – 400 V, 3-phase. Height limiters – electromagnetic; CE certificate; Warranty period – 12 months
