Electro-hydraulic scissor lift 3000kg – recessed version Grubber XL300I-E2
The scissor lift is designed for routine maintenance of passenger cars. The lift's design is suitable for installation in a pit. Once installed, the lift's surface is completely flush with the floor surface. Unlike two-post lifts, scissor lifts provide a much more ergonomic workspace and take up significantly less space.

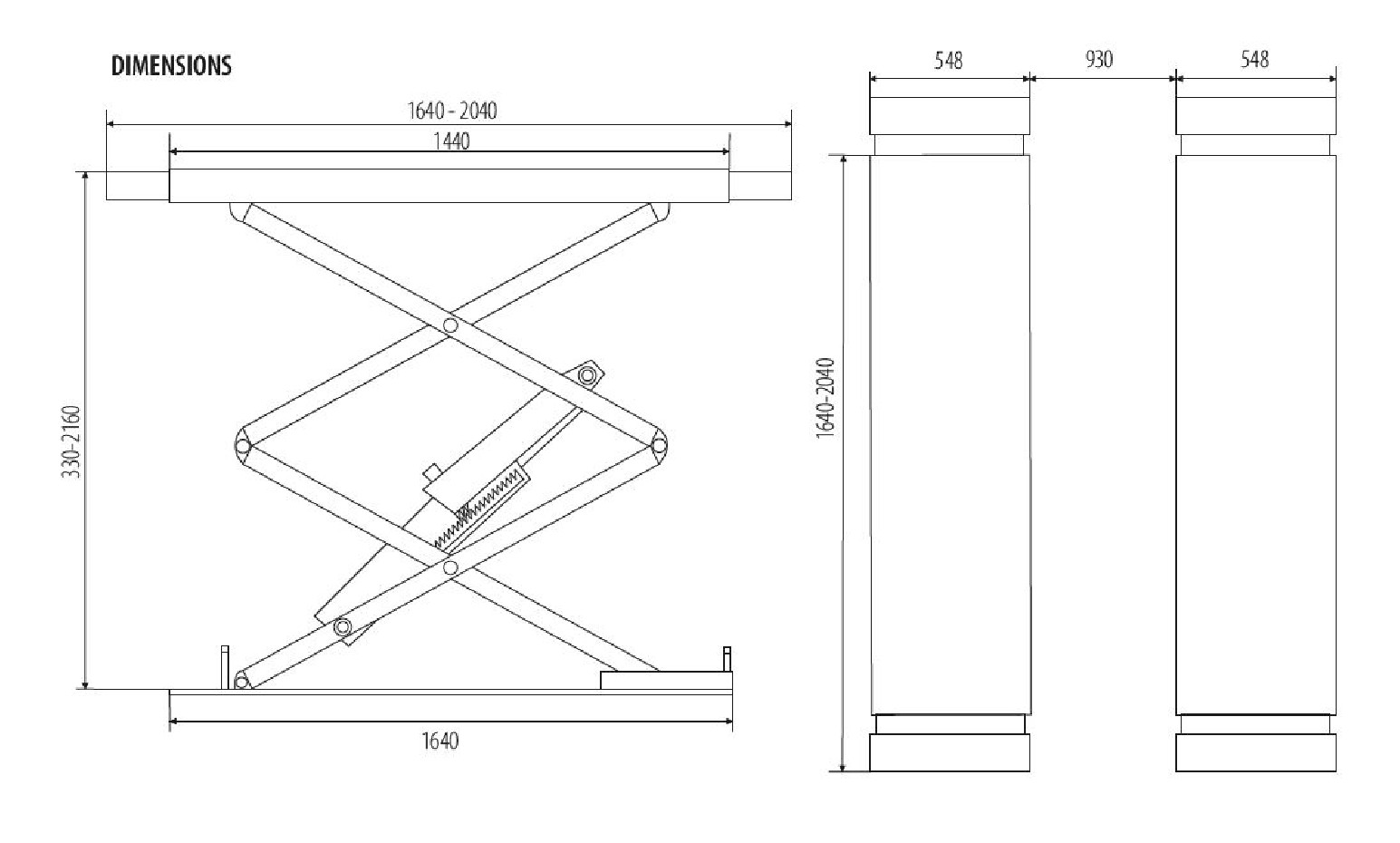

Technical specifications:
Integrated lubrication points
Integrated rubber mats
Maximum lifting capacity – 3000 kg;
Lifting height – 2160 mm;
Minimum height – 330mm;
Hydraulic pump power – 2.2 kW;
Platform length – from 1640 to 2040 mm;
Platform width – 548mm;
Power supply – 400V, 50 Hz
Number of cylinders – 4;
The operating principle of the cylinders is 'master-slave';
Operating principle – electrohydraulic;
Height locks – pneumatic;
24 V control voltage;
Stationary control panel;
CE conformity certificate;
Warning signals in the final landing phase
Product params
Electro-hydraulic scissor lift 3000kg – deep version Grubber XL300I-E2
The scissor lift is designed for routine maintenance of passenger cars. The lift's design is suitable for installation in a pit. Once installed, the lift's surface is completely flush with the floor surface. Unlike two-post lifts, scissor lifts provide a much more ergonomic workspace and take up significantly less space.
