Four-post lift 12T for commercial vehicles, with level platforms NORTEC PO1200F
Lift - extended version, designed to service commercial vehicles.
A powerful hydraulic system and a 3.0 kW electro-hydraulic pump develop a lifting capacity of up to 12 tons, while the additional axle lift can easily handle a 5-ton load.

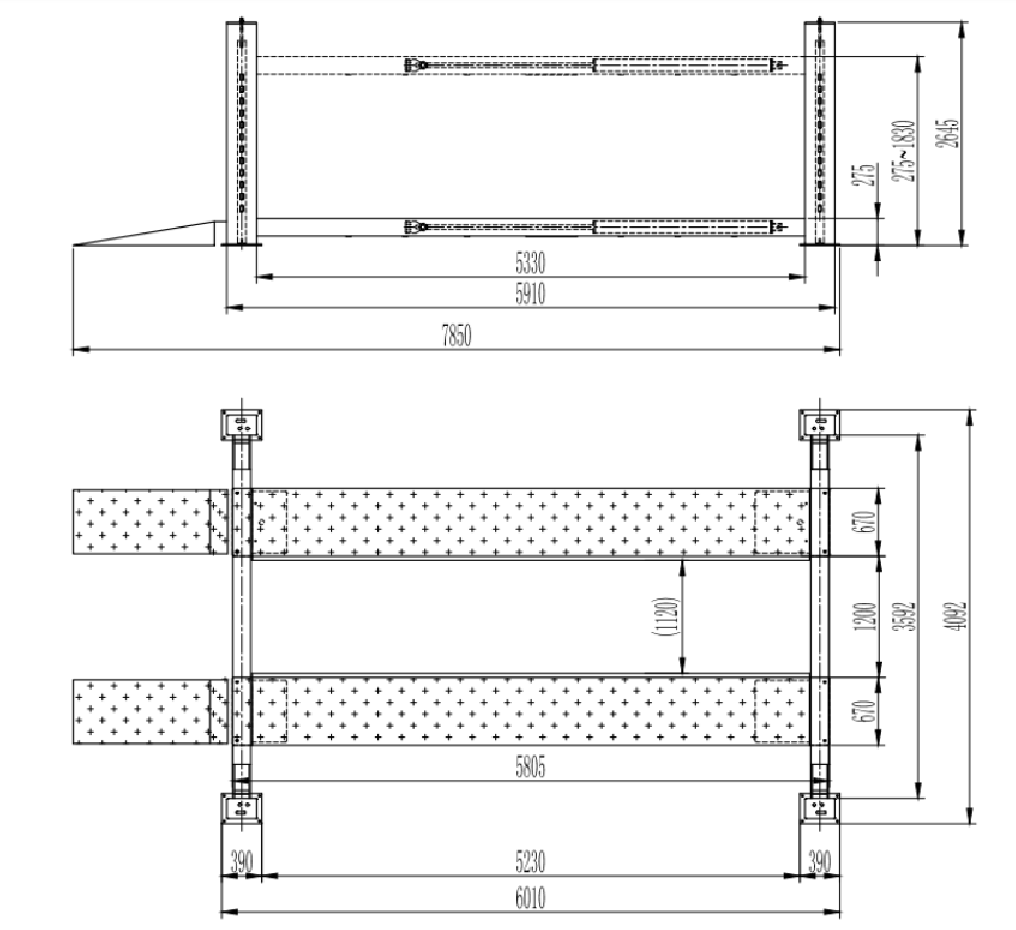

Technical specifications:
The crane's lifting capacity is 12 tons;
The axle hoist lifting capacity is 5 tons;
Platform length – 5805 mm
External width – 4092 mm
Platform width – 670 mm;
Overall lift length – 7850 mm;
Minimum lift height - 275 mm;
Maximum lifting height – 1830 mm;
Column height - 2645 mm;
Distance between platforms 1120 mm;
Maximum axle lift height 375 mm;
Power supply 400V
Weight 4500 kg
CE certificate
Warranty period – 12 months.
Product params
Four-post lift 12T for commercial vehicles, with level platforms NORTEC PO1200F
Lift – extended version, designed to service commercial vehicles.
A powerful hydraulic system and a 3.0 kW electro-hydraulic pump develop a lifting capacity of up to 12 tons, while the additional axle lift can easily handle a 5-ton load.
