Four-post lifts
Four-post lifts
Grid View:

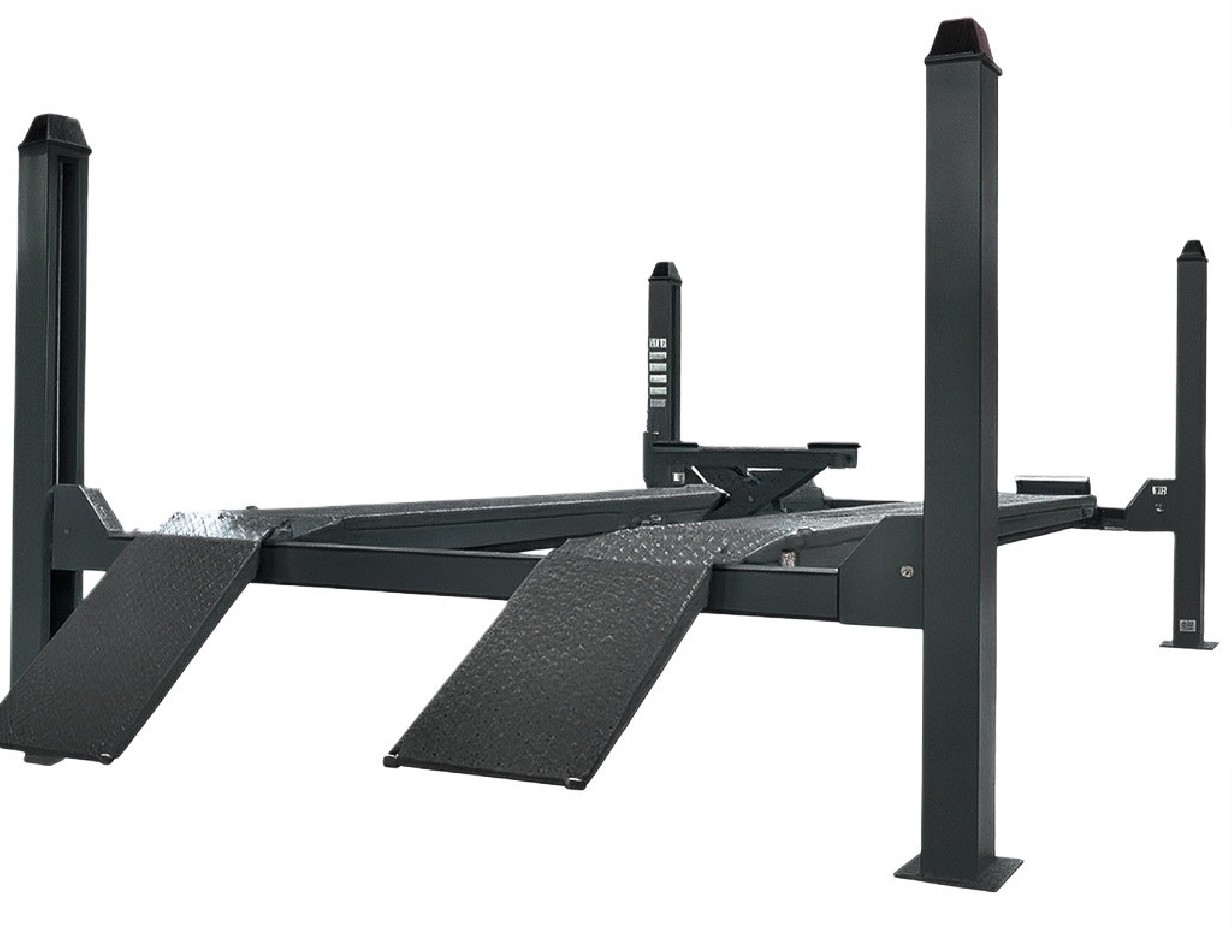

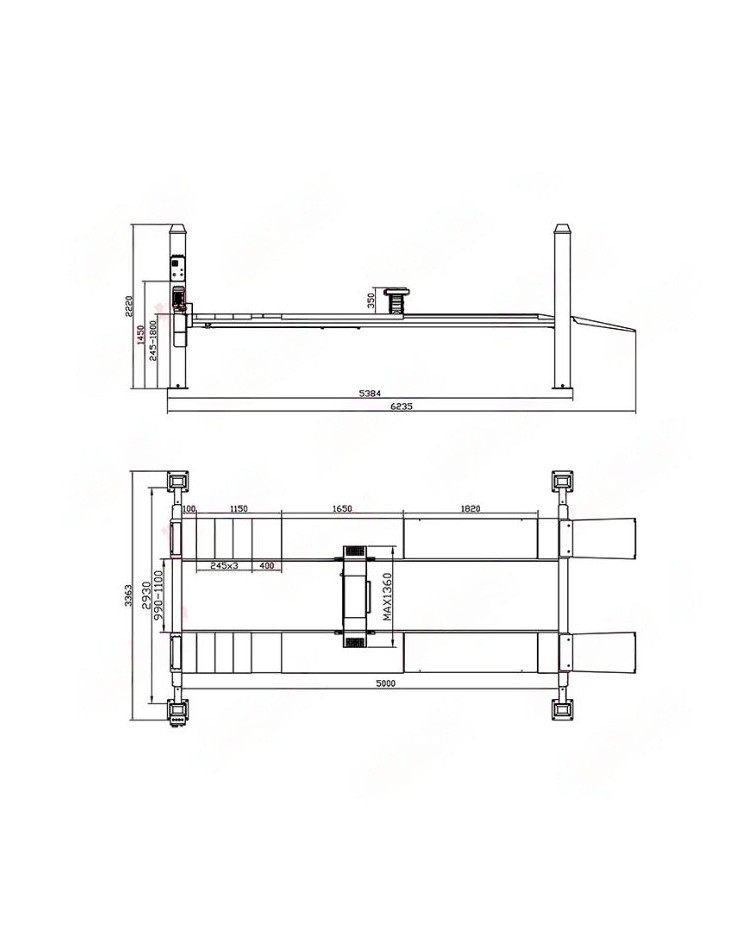

JH-4P5000J 4-post lift 5000kg for wheel alignment / 400V
3900.00 €
Four-post lift for wheel alignment adjustments
The lift is designed to perform wheel alignment adjustment work. The platforms have integrated rear sliding plates, and recesses for the front turn plates allow the lift to be used with almost all wheel alignment racks available on the market.
A powerful hydraulic system, the electro-hydraulic pump develops a lifting capacity of up to 5.0 tons, while an additional axle lifter can easily handle a load of 3.0 tons.
Technical specifications:
The lifting capacity of the hoist is 5.0 tons;
Platform length – 5000 mm
External width – 3363 mm
Overall lift length – 6235 mm;
Maximum lifting height – 1800 mm;
Column height - 2220 mm;
Height lock control - Electric
CE certificate

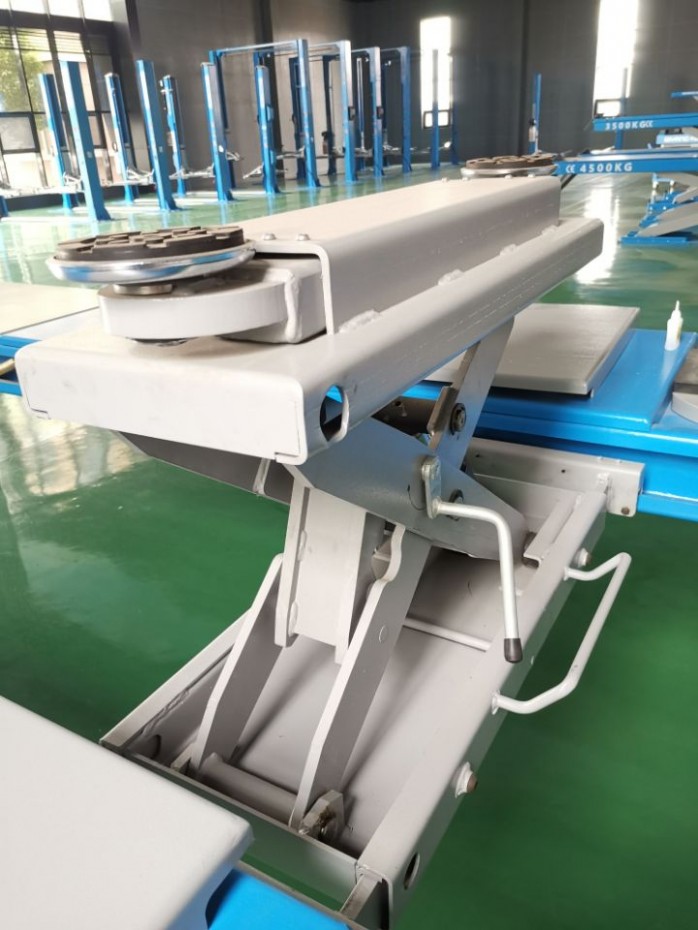

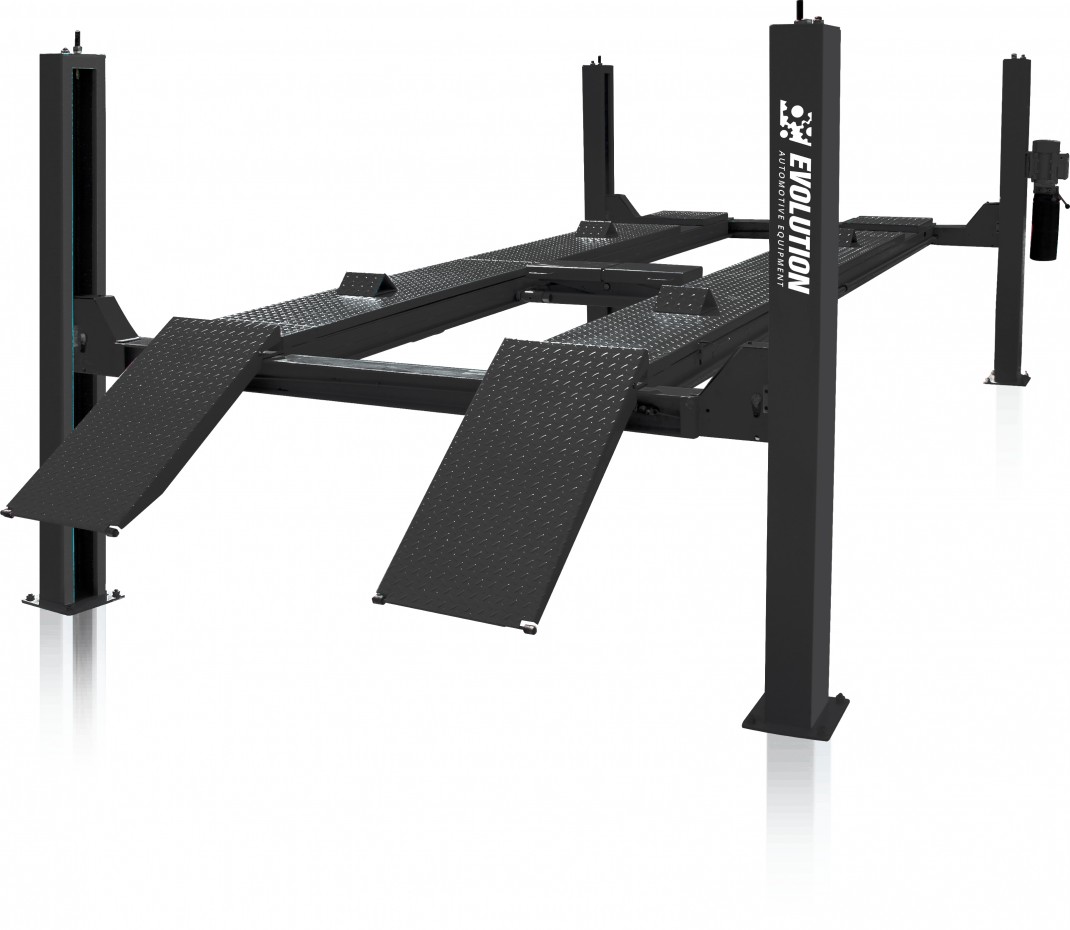

EVO-50 4-column lift 5000kg for wheel alignment EVOLUTION/400V
4100.00 €
Four-post lift for wheel alignment adjustments
The lift is designed to perform wheel alignment adjustment work. The platforms have integrated rear sliding plates, and recesses for the front turn plates allow the lift to be used with almost all wheel alignment racks available on the market.
A powerful hydraulic system and a 3.0 kW electro-hydraulic pump develop a lifting capacity of up to 5.0 tons, while an additional axle lifter can easily handle a 3.0-ton load.
Technical specifications:
The lifting capacity of the hoist is 5.0 tons;
The axle lift has a lifting capacity of 3.0 tons;
Platform length – 5100 mm
External width – 3400 mm
Platform width – 580 mm;
Length of sliding plates – 1974 mm;
Overall lift length – 5825 mm;
Minimum lift height - 180 mm;
Maximum lifting height – 1700 mm;
Column height - 2220 mm;
Adjustable distance between platforms from 812 to 1110 mm;
Maximum axle lift height 400 mm;
Height lock control - pneumatic
CE certificate

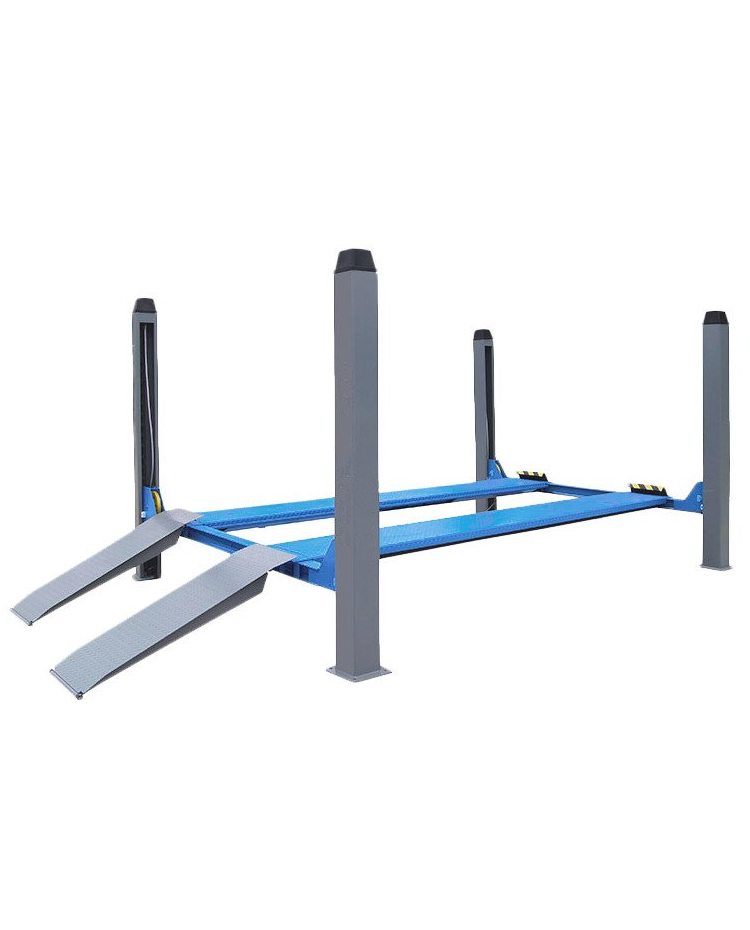

4-post lift 5500kg for wheel alignment NORTEC PRO/400V
7600.00 €
Four-post lift for wheel alignment adjustments
The lift is designed to perform wheel alignment adjustment work. The platforms have integrated rear sliding plates, and recesses for the front turn plates allow the lift to be used with almost all wheel alignment racks available on the market.
A powerful hydraulic system and a 2.2 kW electro-hydraulic pump develop a lifting capacity of up to 5.5 tons.
Pneumomechanical height fixators!

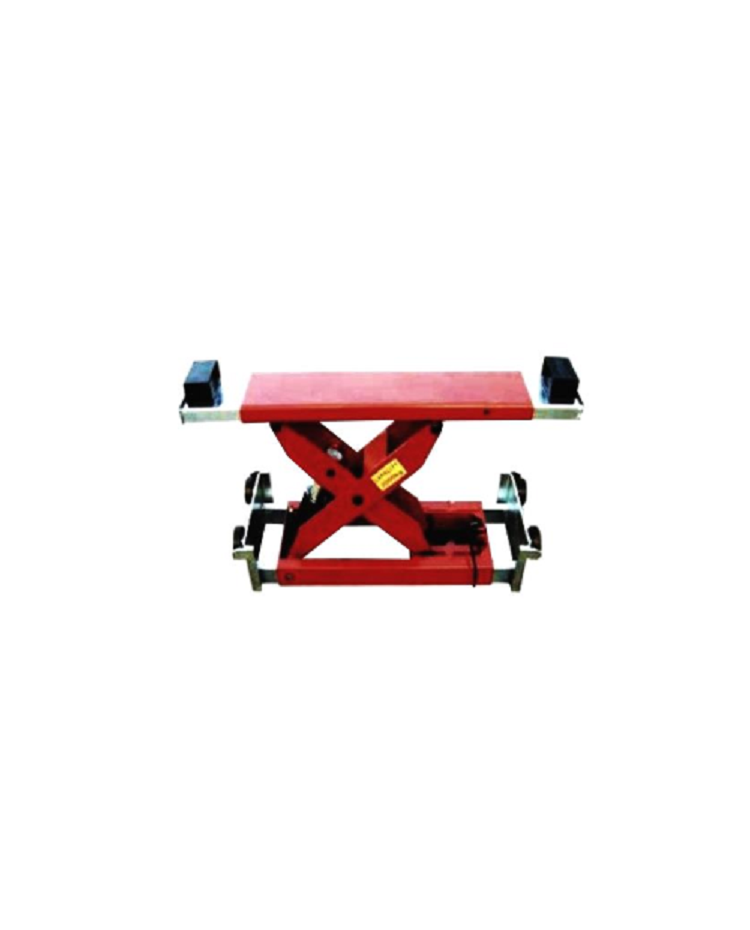

Pneumohydraulic scissor axle lift of improved design 3000kg
Technical specifications:
The lift capacity of the hoist is 5.5 tons;
Platform length – 5190 mm
External width – 3480 mm
Platform width – 490 mm;
Length of sliding plates – 1400 mm;
Total length of the lift – 68,100 mm;
Distance between the fence posts – 3000 mm;
Adjustable inter-platform distance from 800 to 1100 mm;
Weight – 1350 kg.
CE certificate
Warranty period – 12 months.

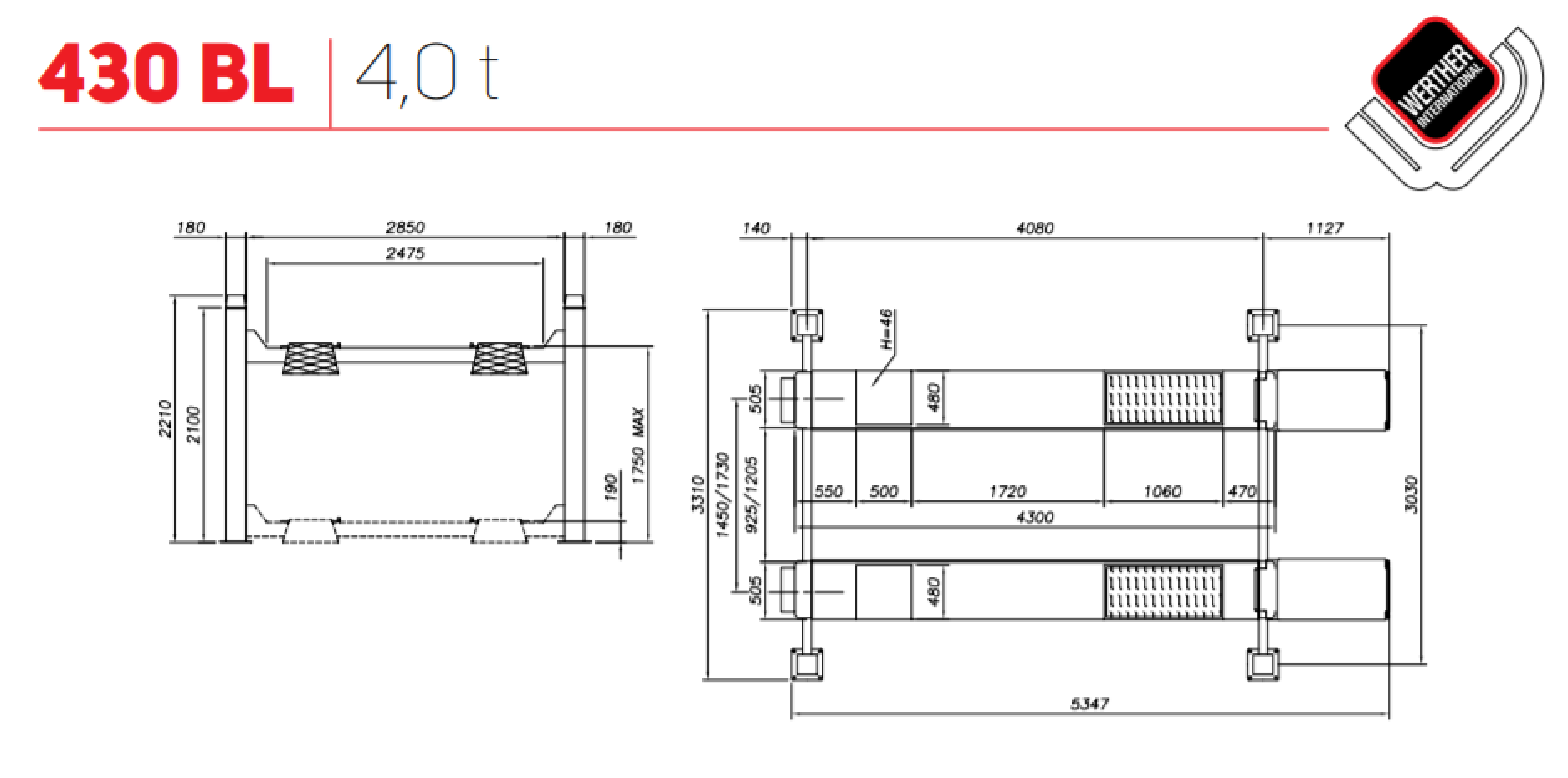

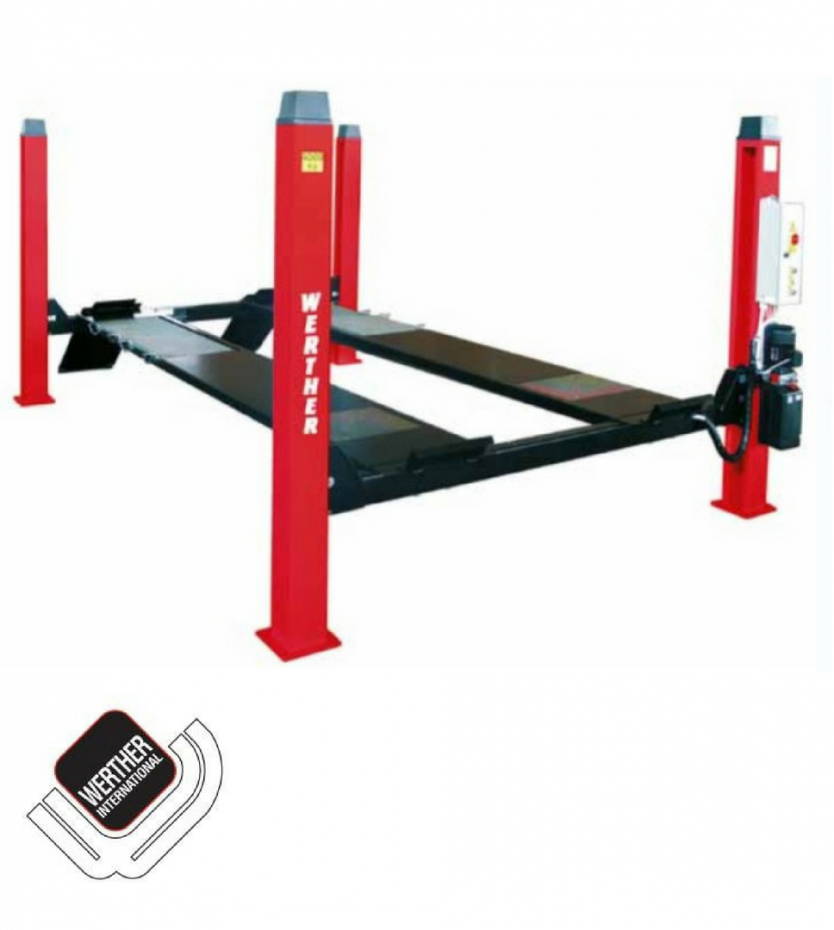

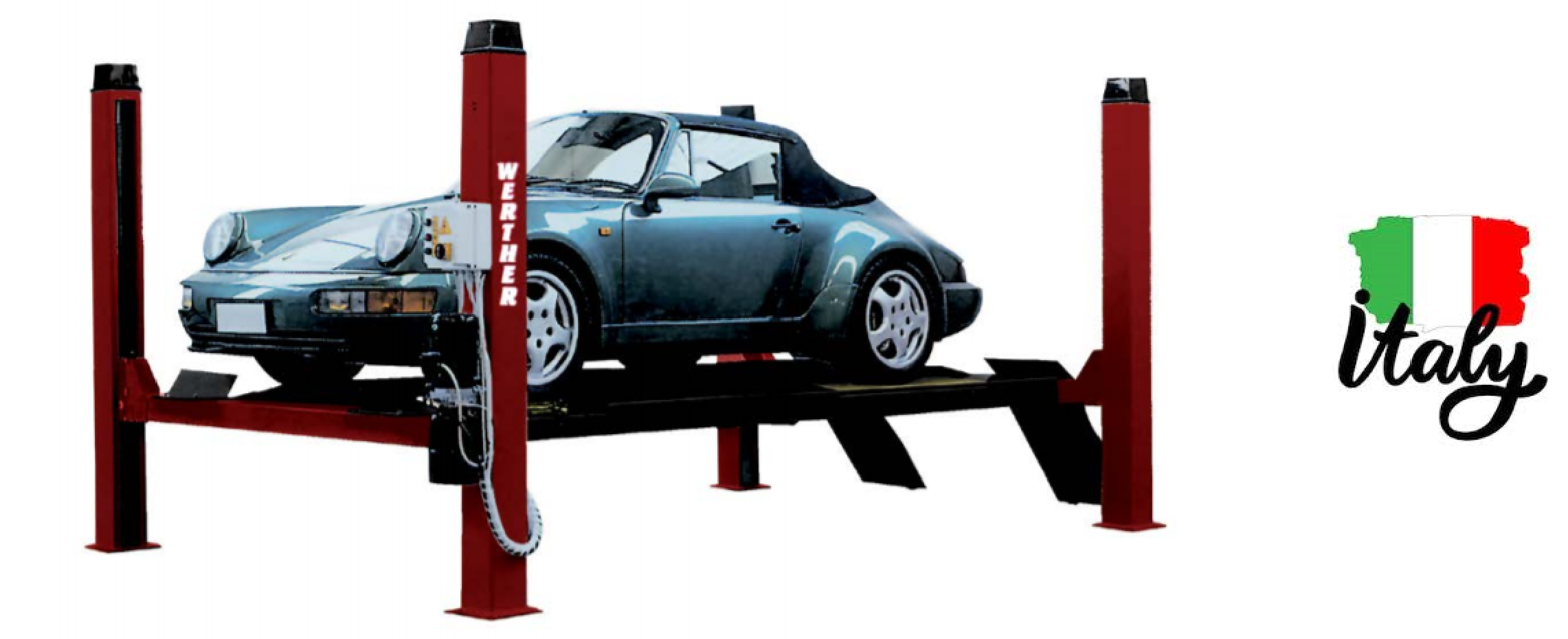

4-post lift 4000kg for wheel alignment WERTHER/400V
8010.00 €
4-post electro-hydraulic lift 4 T for wheel alignment work WERTHER 430BL
Advantages of the lift:
Automatic height locks in each column;
Overload safety valve;
Safety valve for a burst hydraulic hose;
An audible signal during the final lowering process;
Mechanically lockable rear sliding panels.
Integrated slots for front swivel plates;
Color (red WERTHER brand) or (blue OMA brand)
Technical specifications:
Lifting capacity – 4000 kg;
The length of the lift platforms is 4300 mm;
The total length of the lift is 5420 mm;
The lift platform width is 505 mm;
Adjustable width between platforms from 925 to 1205 mm;
Minimum platform height – 190 mm;
Maximum platform height – 1750 mm;
The internal width of the lift is 2850 mm;
Lifting/lowering time – 50/45 s;
The hydraulic pump motor power is 2.2 kW.

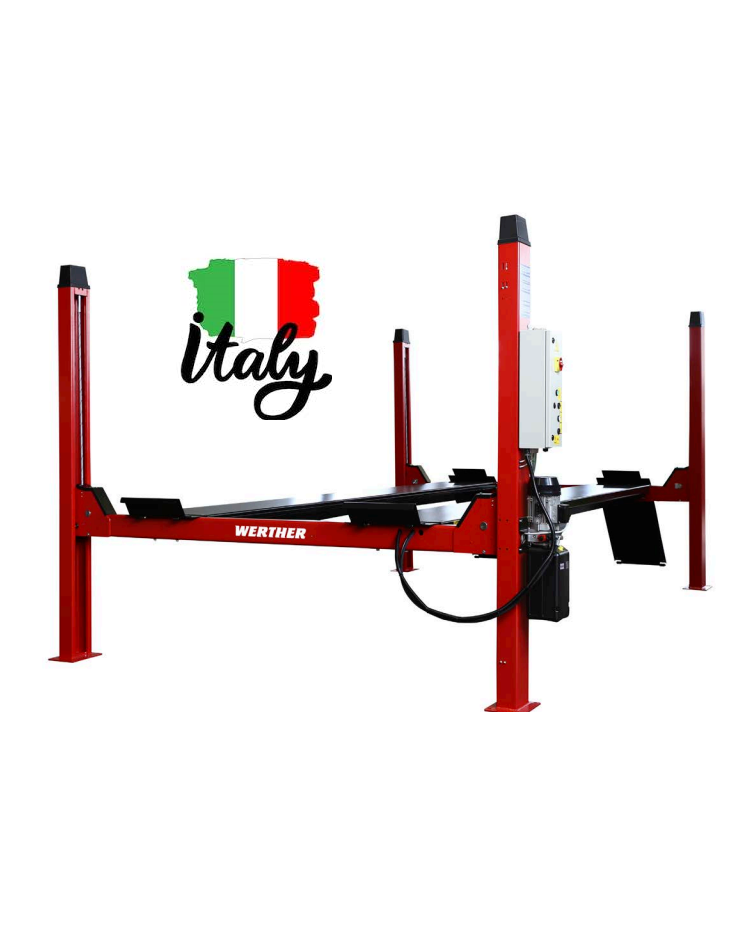

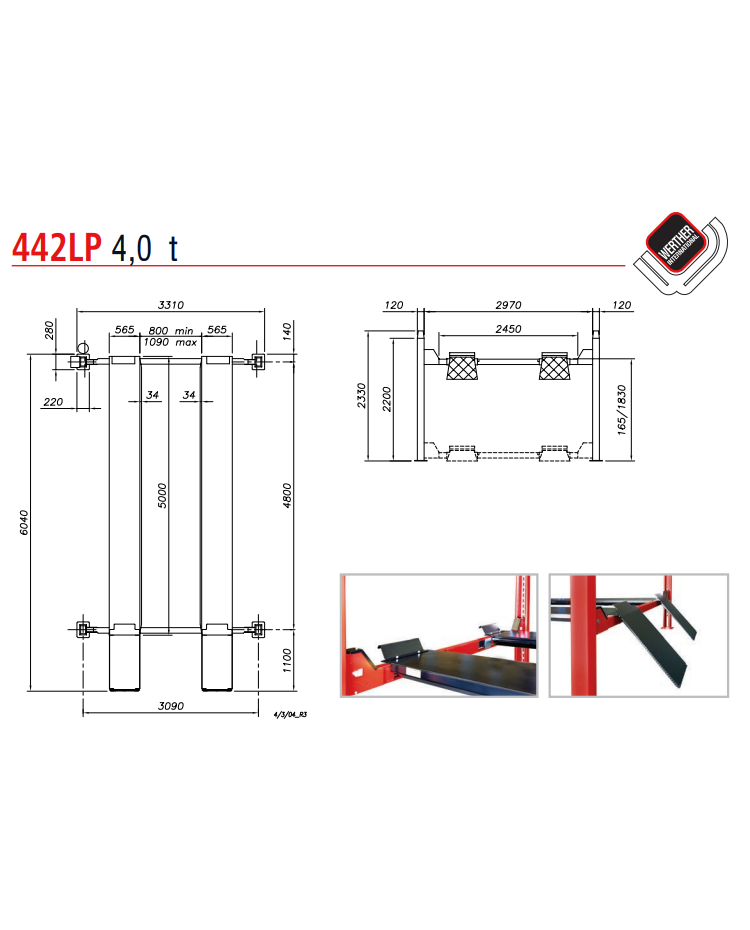

4-column lift 4000kg WERTHER/400V
8200.00 €
Advantages of the lift:
Automatic height locks in each column;
Overload safety valve;
Safety valve for a burst hydraulic hose;
An audible signal during the final lowering process.
Color (red WERTHER brand) or (blue OMA brand)
Technical specifications:
Lifting capacity – 4000 kg;
The length of the lift platforms is 4800 mm;
Overall lift length – 6040 mm;
The width of the lift platforms is 565 mm;
Adjustable width between platforms from 800 to 1090 mm;
Minimum platform height – 165 mm;
Maximum platform height – 1830 mm;
The internal width of the lift (between columns) – 2970 mm;
Lifting/lowering time – 30/30 s;
The hydraulic pump motor power is 3.0 kW.

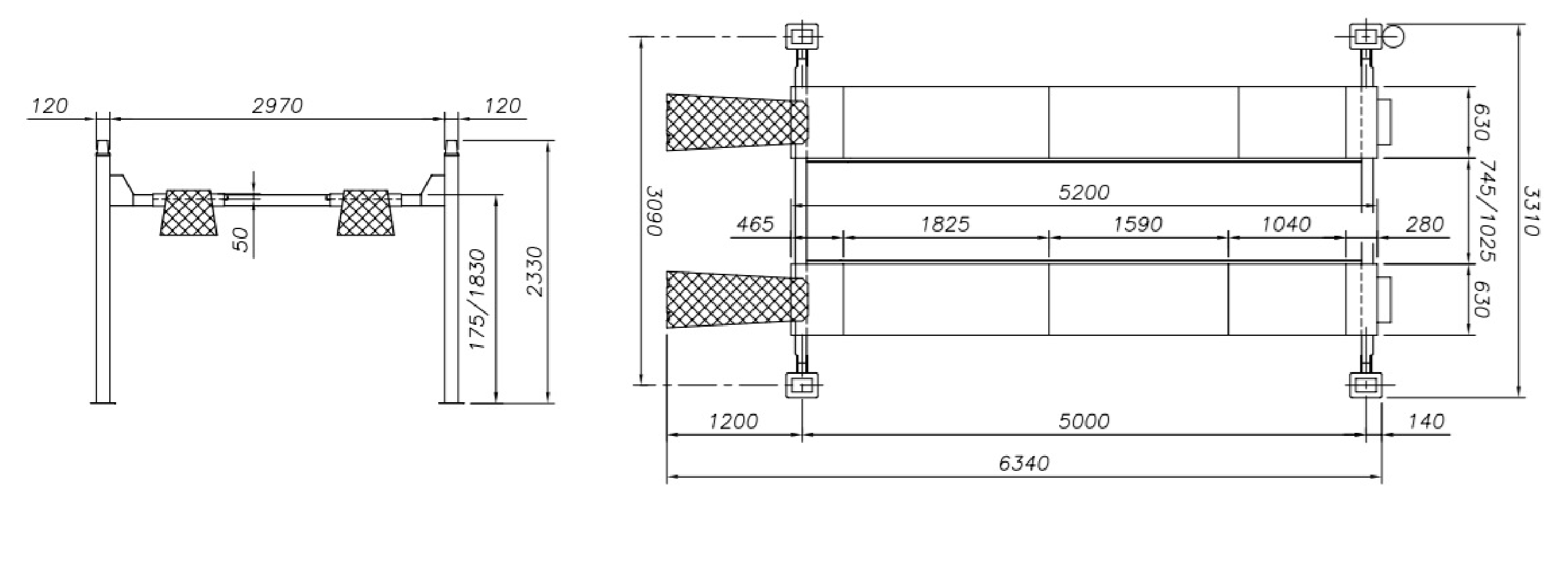

4-post lift 4000kg for wheel alignment WERTHER/400V
9200.00 €
4-post electro-hydraulic lift 4 T for wheel alignment work WERTHER 450ATLV
Advantages of the lift:
Automatic height locks in each column;
Overload safety valve;
Safety valve for a burst hydraulic hose;
An audible signal during the final lowering process;
Mechanically lockable rear sliding panels.
Integrated slots for front swivel plates;
Color (red WERTHER brand) or (blue OMA brand)
Technical specifications:
Lifting capacity – 4000 kg;
The length of the lift platforms is 5200 mm;
Overall lift length – 6340 mm;
The lift platform width is 630 mm;
Adjustable width between platforms from 745 to 1025 mm;
Minimum platform height – 175 mm;
Maximum platform height – 1830mm;
The internal width of the lift is 2970 mm;
Lifting/lowering time – 30/30 s;
The hydraulic pump motor power is 3.0 kW.

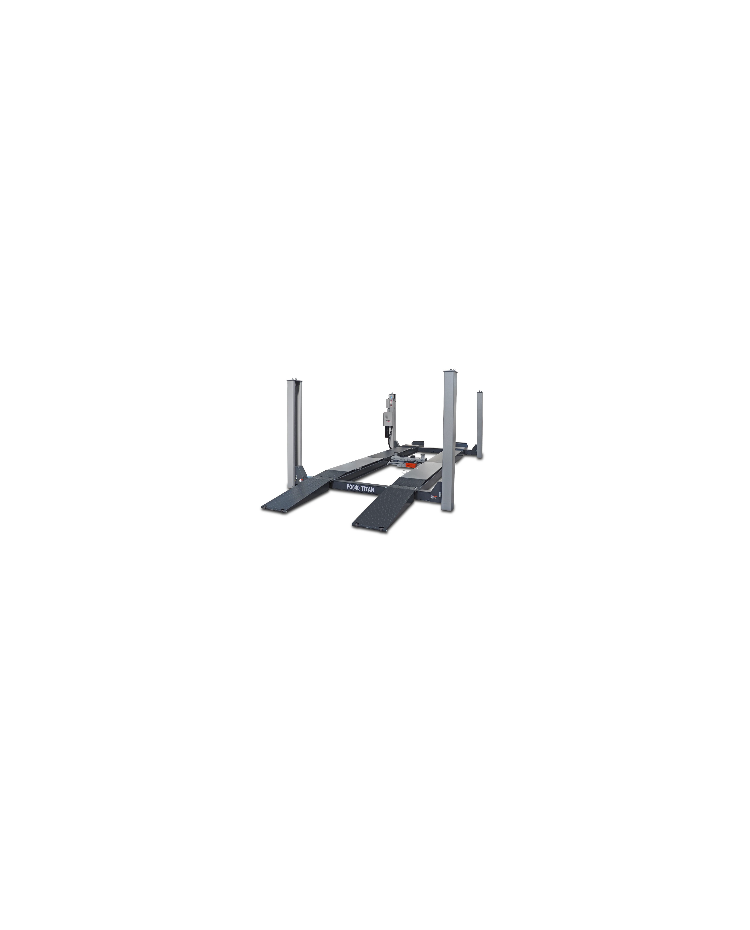

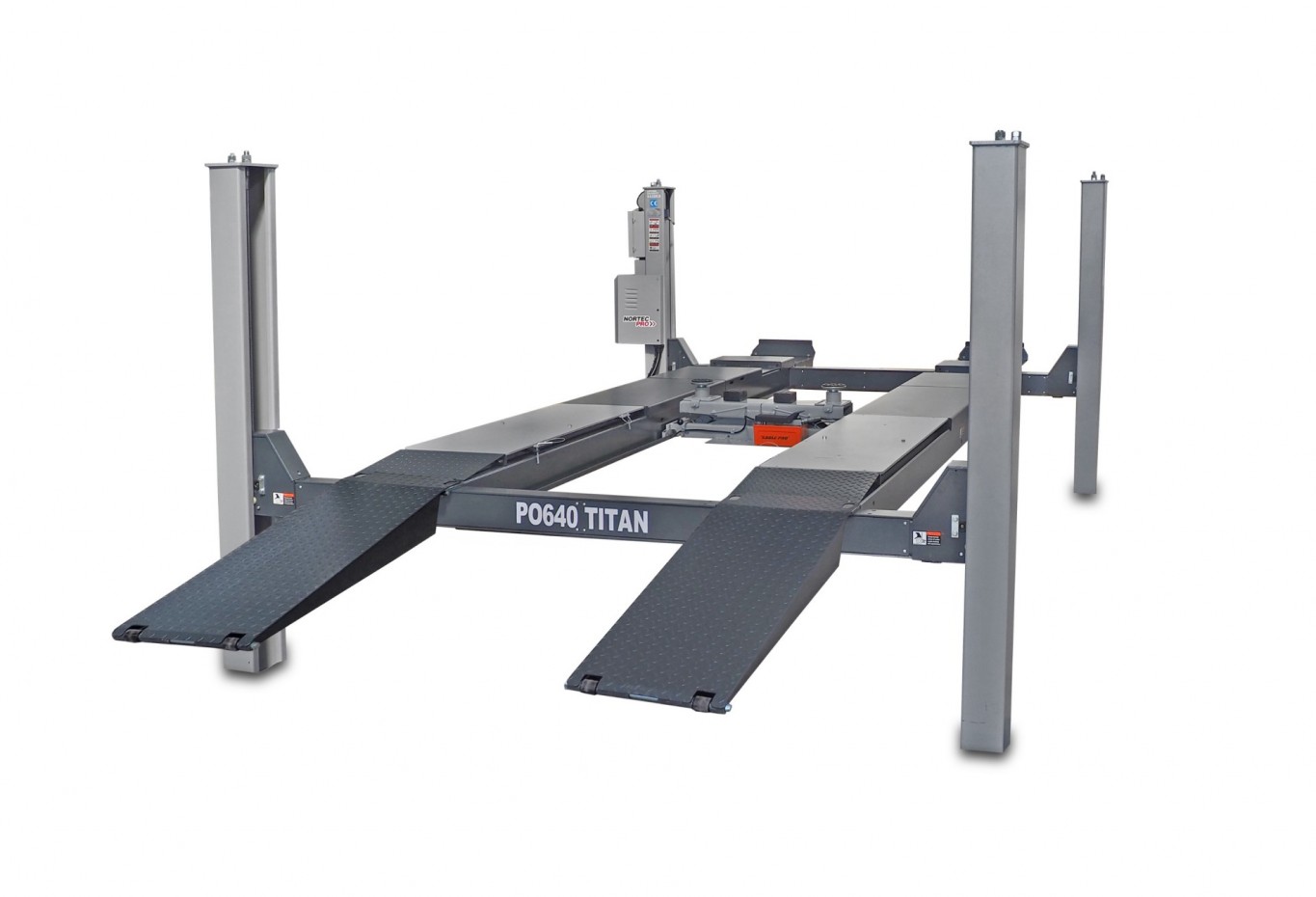

4-post lift 6400kg extended version for wheel alignment work NORTEC PRO
9100.00 €
Four-post lift extended version for wheel alignment work NORTEC PRO PO640 TITAN
Lift - extended version, designed to carry out wheel alignment work. The platforms feature integrated rear sliding plates, and recesses for the front turn plates allow the lift to be compatible with almost all wheel alignment stands on the market.
A powerful hydraulic system and a 2.2 kW electro-hydraulic pump develop a lifting capacity of up to 6.4 tons, while an additional axle lifter can easily handle a load of 2.5 tons.
Technical specifications:
The lift capacity of the hoist is 6.4 tons;
The lifting capacity of the axle hoist is 3.2 tons;
Platform length – 5800 mm
External width – 3320 mm
Platform width – 580 mm;
Overall lift length – 6502 mm;
Minimum lift height - 178 mm;
Maximum lifting height – 1850 mm;
Column height - 2362 mm;
Distance between platforms 1000 mm;
Maximum axle lift height 480 mm;
Power supply 400V
Weight 1590 kg
CE certificate
Warranty period – 12 months

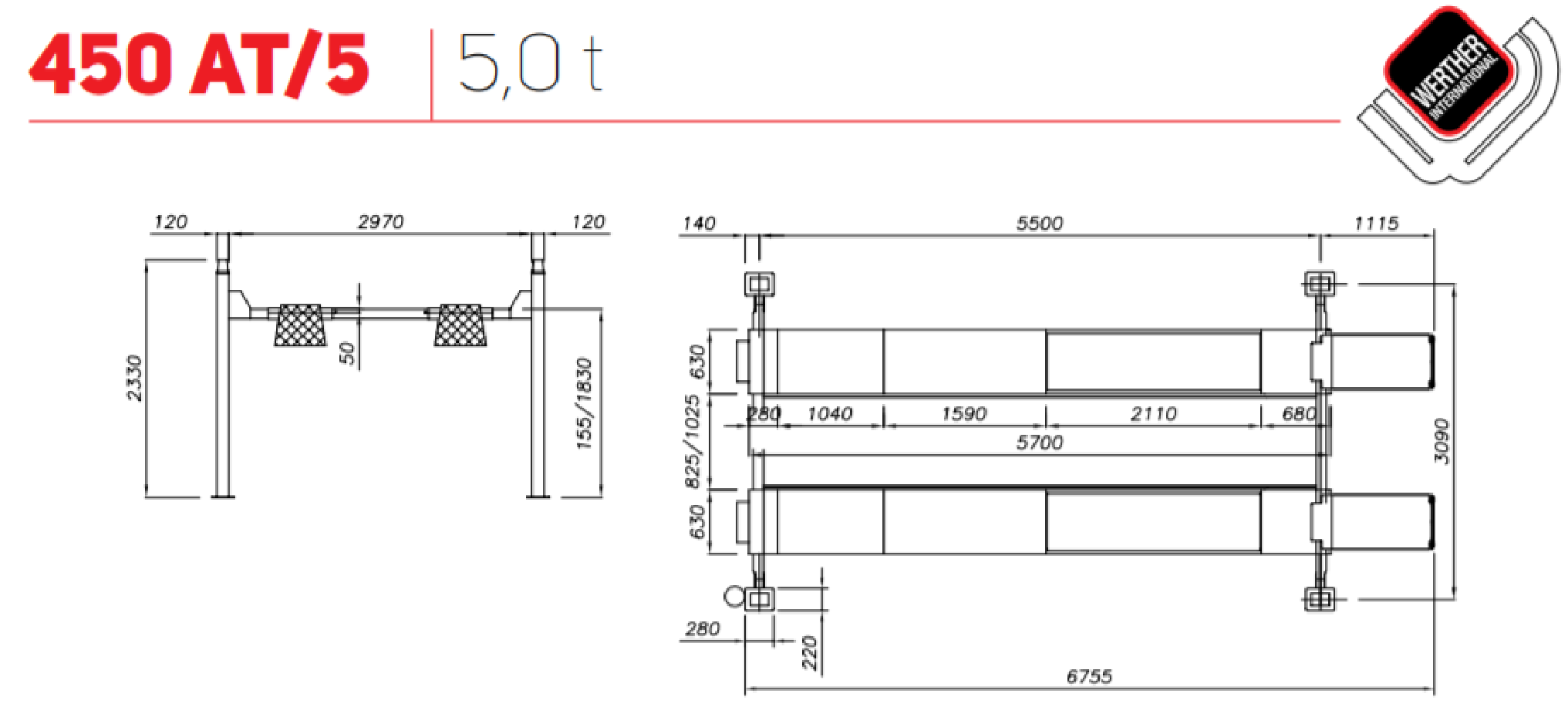

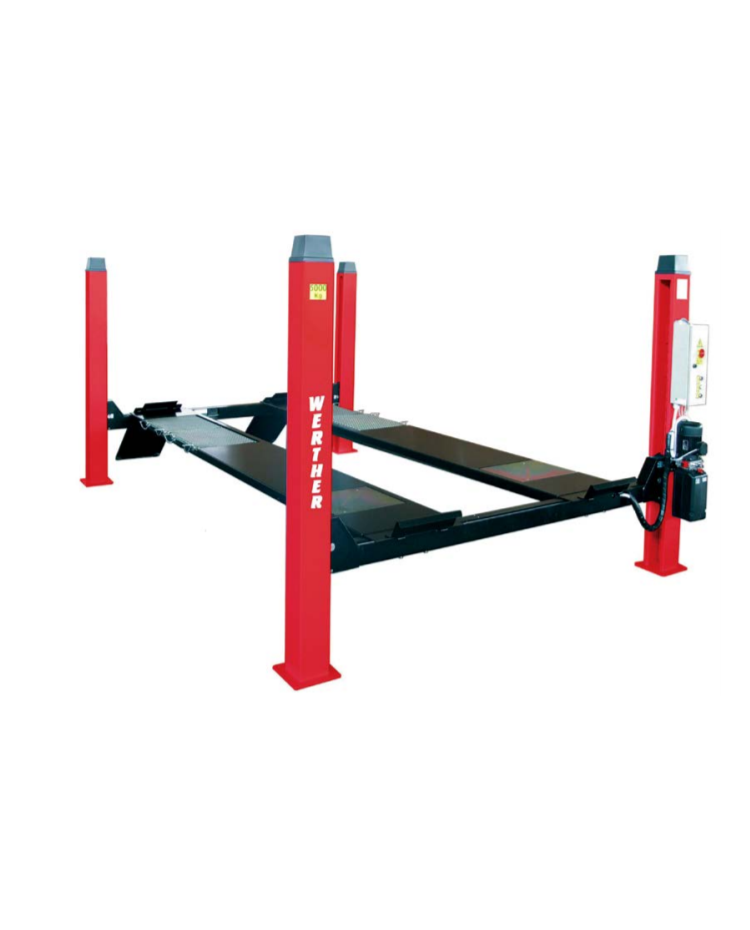

4-post lift 5000kg for wheel alignment WERTHER/400V
13400.00 €
4-post electro-hydraulic lift 5 T for wheel alignment work WERTHER 450AT/5
Advantages of the lift:
Automatic height locks in each column;
Overload safety valve;
Safety valve for a burst hydraulic hose;
An audible signal during the final lowering process;
Mechanically lockable rear sliding panels.
Integrated slots for front swivel plates;
Color (red WERTHER brand) or (blue OMA brand)
Technical specifications:
Lifting capacity – 5000 kg;
The length of the lift platforms is 5700 mm;
The total length of the lift is 6840 mm;
The lift platform width is 630 mm;
Adjustable width between platforms from 825 to 1025 mm;
Minimum platform height – 155 mm;
Maximum platform height – 1830 mm;
The internal width of the lift is 2970 mm;
Lifting/lowering time – ~ 30/30 s;
The hydraulic pump motor power is 3.0 kW.

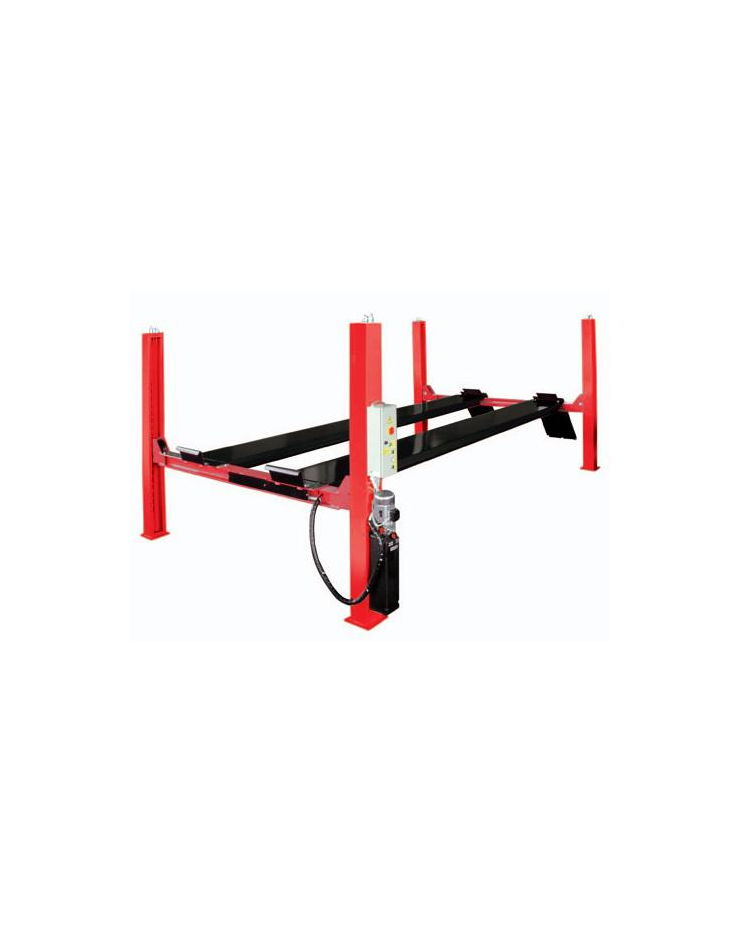

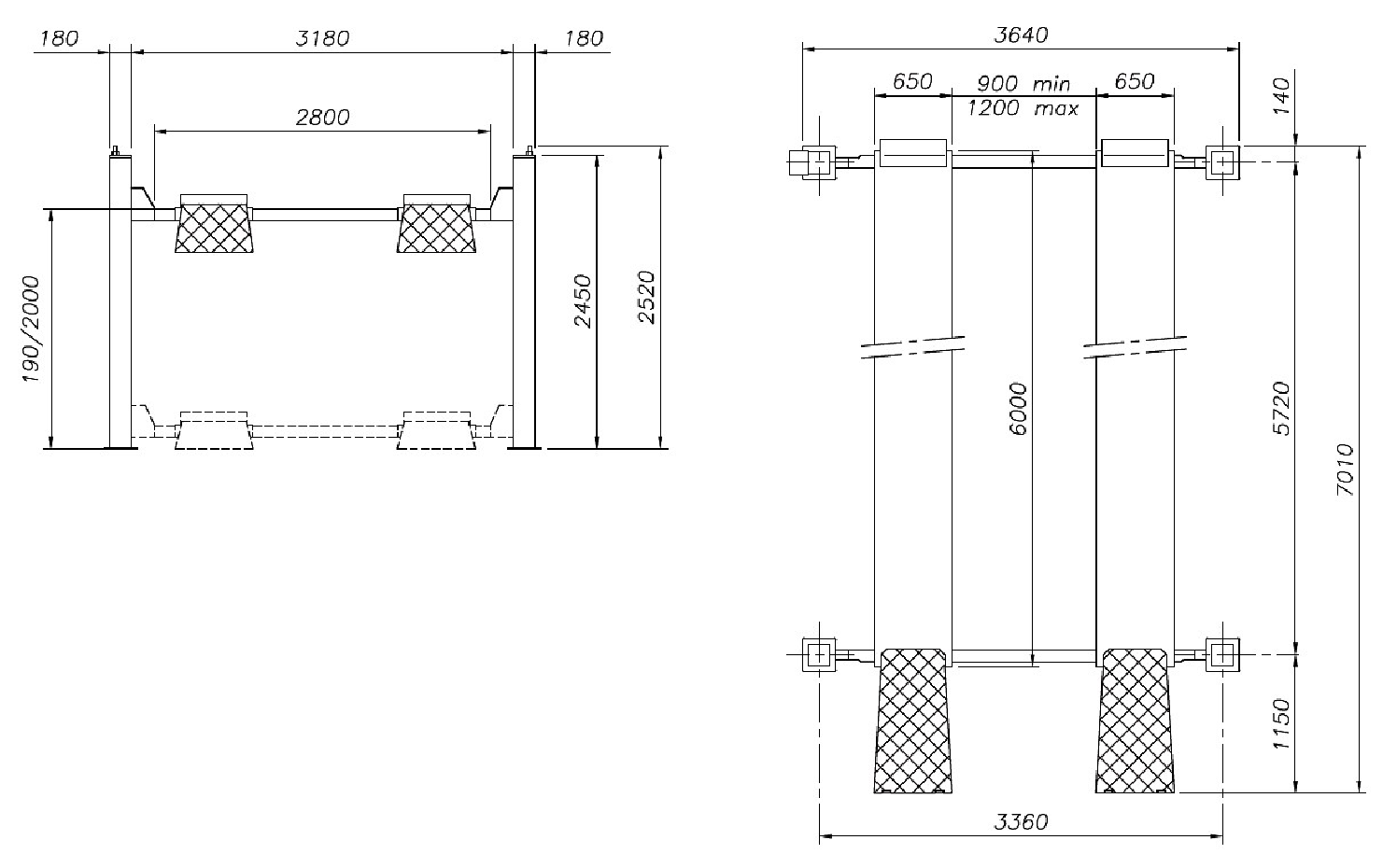

4-column lift 6000kg WERTHER/400V
15300.00 €
4-column electro-hydraulic lift 6 T with flat platforms WERTHER 460AT
Advantages of the lift:
Automatic height locks in each column;
Overload safety valve;
Safety valve for a burst hydraulic hose;
An audible signal during the final lowering process.
Color (red WERTHER brand) or (blue OMA brand)
Technical specifications:
Lifting capacity – 6000 kg;
The length of the lift platforms is 5720 mm;
Overall lift length – 7010 mm;
The lift platform width is 650 mm;
Adjustable width between platforms from 900 to 1200 mm;
Minimum platform height – 245 mm;
Maximum platform height – 2050 mm;
The internal width of the lift is 3180 mm;
Lifting/lowering time – ~ 75/50 s;
The hydraulic pump motor power is 3 kW.

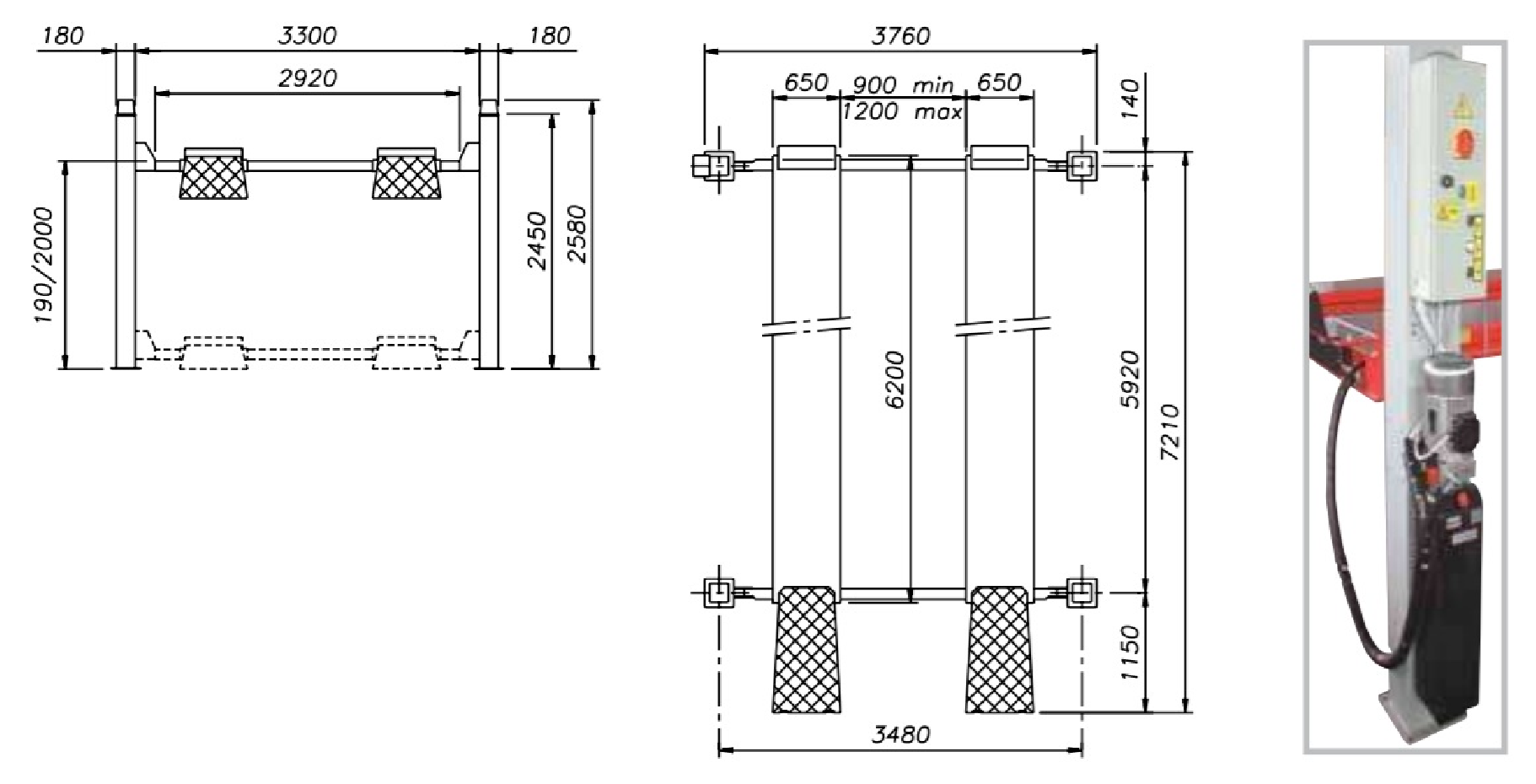

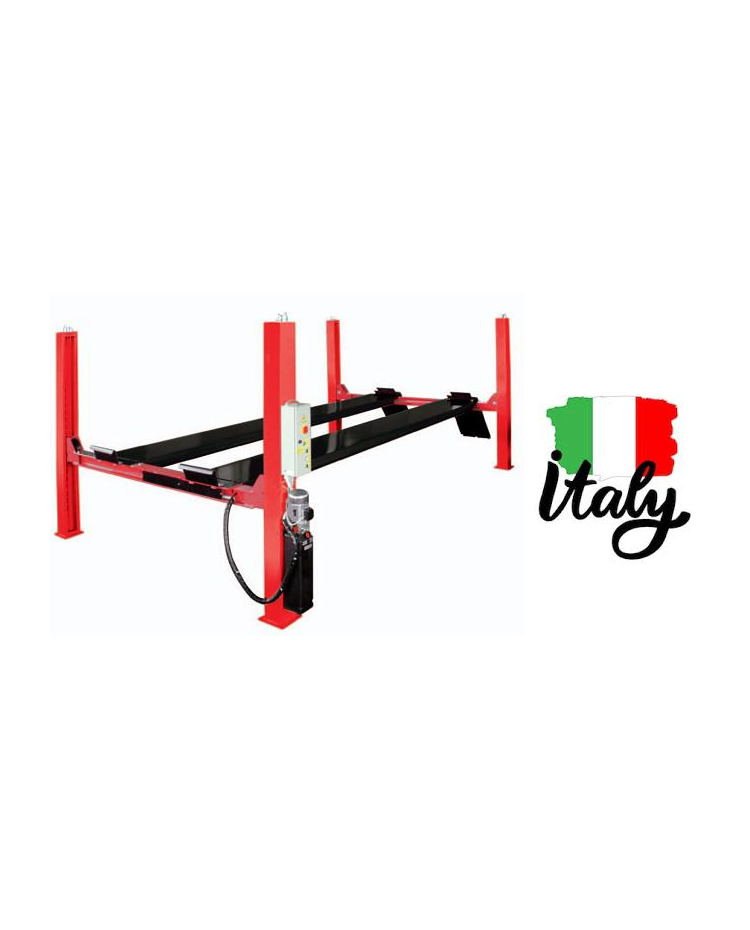

4-column lift 8000kg WERTHER/400V
17050.00 €
8 T Electro-Hydraulic Lift with Equal Platforms WERTHER 480AT
Advantages of the lift:
Automatic height locks in each column;
Overload safety valve;
Safety valve for a burst hydraulic hose;
An audible signal during the final lowering process.
Color (red WERTHER brand) or (blue OMA brand)
Technical specifications:
Lifting capacity – 8000 kg;
The length of the lift platforms is 5720 mm;
Overall lift length – 7010 mm;
The lift platform width is 650 mm;
Adjustable width between platforms from 900 to 1200 mm;
Minimum platform height – 245 mm;
Maximum platform height – 2050 mm;
The internal width of the lift is 3180 mm;
Lifting/lowering time – ~ 75/50 s;
The hydraulic pump motor power is 3 kW.

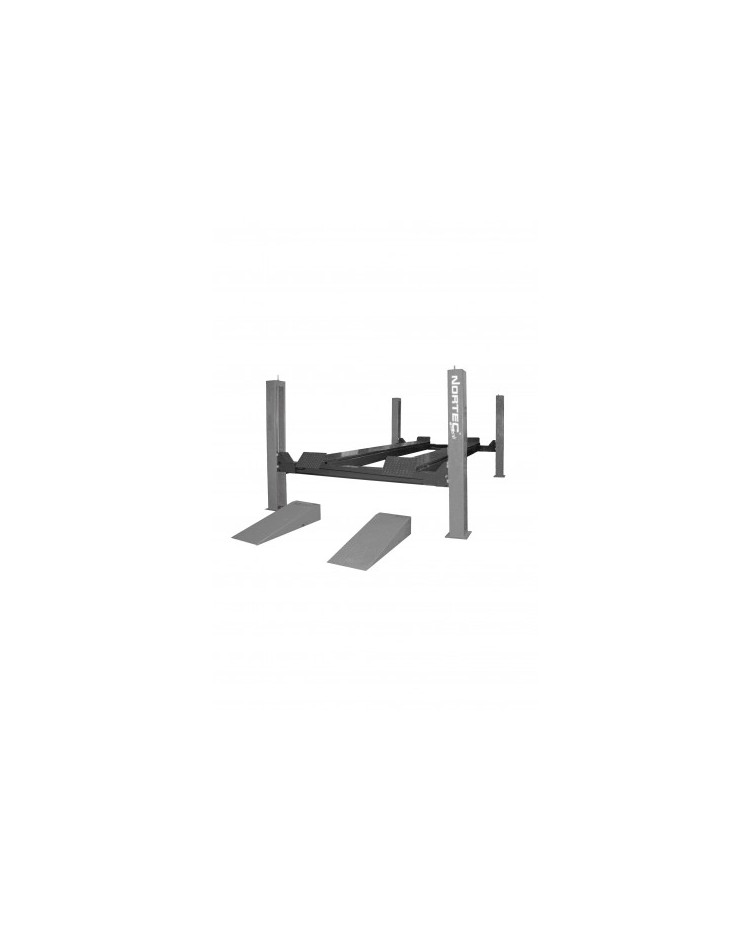

4-column 12T lift for commercial vehicles with even platforms NORTEC PRO
23000.00 €
Four-post lift 12T for commercial vehicles, with level platforms NORTEC PO1200F
Lift - extended version, designed to service commercial vehicles.

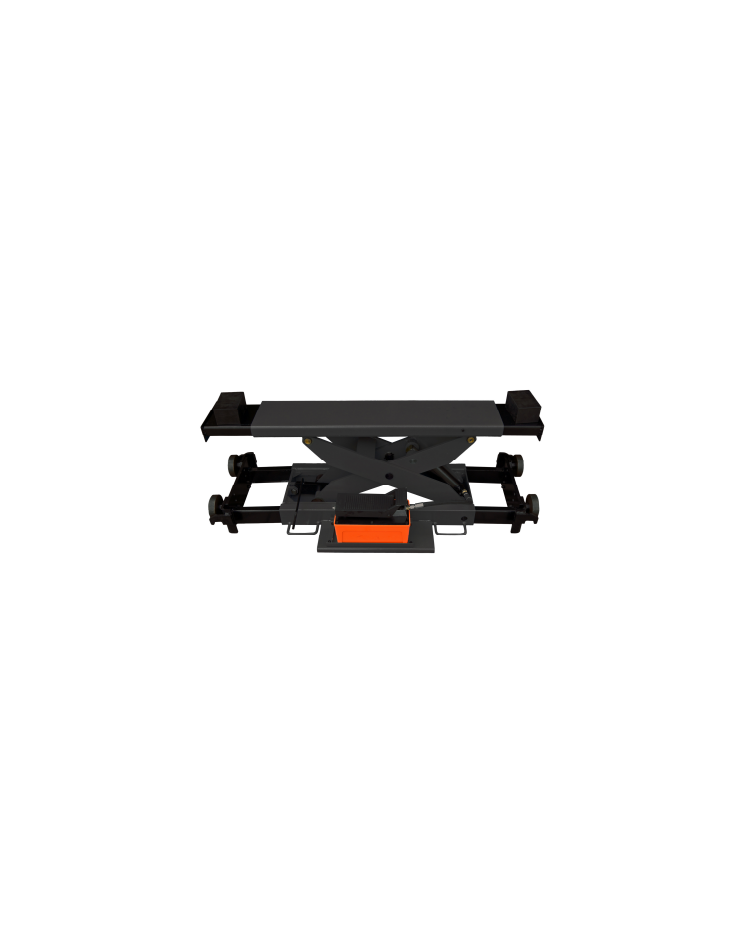

A powerful hydraulic system and a 3.0 kW electro-hydraulic pump develop a lifting capacity of up to 12 tons, while the additional axle lift can easily handle a 5-ton load.
Technical specifications:
The crane's lifting capacity is 12 tons;
The axle hoist lifting capacity is 5 tons;
Platform length – 5805 mm
External width – 4092 mm
Platform width – 670 mm;
Overall lift length – 7850 mm;
Minimum lift height - 275 mm;
Maximum lifting height – 1830 mm;
Column height - 2645 mm;
Distance between platforms 1120 mm;
Maximum axle lift height 375 mm;
Power supply 400V
Weight 4500 kg
CE certificate
Warranty period – 12 months.
Showing 1 to 15 of 15 (1 Pages)
